PELLENC RASION 2 EASY BATTERY MOWER

Mowing with consideration for the user's well-being.

Pellenc Brochure Rasion 2

The high-productivity electric solution for perfect mowing

Whether you choose the SMART or the EASY model, the RASION 2 range of professional mowers has been designed to combine outstanding mowing quality with optimum productivity. Long battery life, great manoeuvrability, and ergonomics. They have synchronised dual blades and a new IMS* circuit board to manage overheating and increase efficiency. Waterproof and very quiet, RASION 2 mowers can be used in all weather conditions, anytime, anywhere. They ensure the well-being of the user as well as the neighbourhood.

Adjust your cutting speed to the work at hand

• Maintenance mowing: lower the rotational speed fo the blades and increase the ground speed.
• Difficult conditions (tall grass): increase the speed of the blades (C3) and reduce ground speed 2 km/h.

C1 Maintenance, speed 1 suitable for noise- sensitive environments, dry grass, height < 5cm

C2 Maintenance, speed 2 suitable for noise-sensitive environments Wet grass, height between 5 and 10cm

C3 Mulching, discharging Wet and thick grass, height between 10 and 15 cm

C4 Difficult collection conditions and fast ground speeds Dry grass

Boost function activated by pressing the trigger twice

YOU BARELY HEAR THEM WORKING

• 91 dB at speed 3 and 93 dB at maximum power

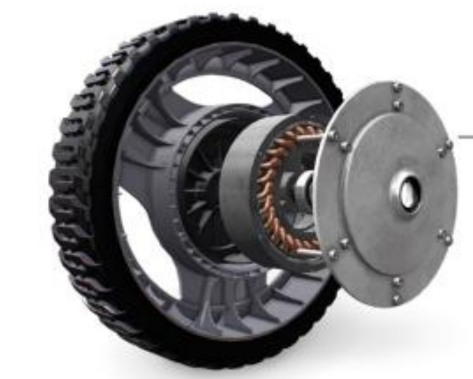

• New and very quiet direct-drive brushless wheel motor
• Reduced noise disturbance and no fumes: can be used in populated areas at any time of the day

NOTHING STOPS THEM

• Up to 5 hours of battery life, i.e. 5,400 m².
• IP54 sealing means the machine can be used in all weather conditions
• Can work with all PELLENC batteries from the Alpha 520 upwards
• Optimised automatic unblocking system
• 70 L capacity, i.e. more than 10 kg of grass, with optimised bin compaction thanks to finer mowing

THEY WORK FAST AND WELL

•  1600W power and large cutting width: 60 cm
• Universal blades (collection + mulching) as standard
• Perfect mowing with synchronized dual blades
• New electronic management thanks to its IMS* circuit board. It allows for better heat dissipation, pushing the limits of the machine.
• Cutting efficiency 30% higher than a conventional mower
• Saves time by adapting the speed of the blades according to the density of the grass (ICC** Infrared Sensor - equipped as standard on the Smart, available as an option on the Easy)

*Insulated Metallic Substrate.
**Intelligent Cutting Control - PELLENC patent

VERY COMFORTABLE TO USE

• Exceptionally low vibration rate of 0.7m/s², more than 6 times lower than a petrol mower
• Lightweight (Easy: 28 kg, Smart: 30 kg) and ultra-manoeuvrable: Zero Turn single front freewheels for more fluid work
• 2 wheel-locking positions: free-turning or guided steering - flexible and smooth
• The handlebar and controls can be adjusted to the user’s height.
• Safe cleaning

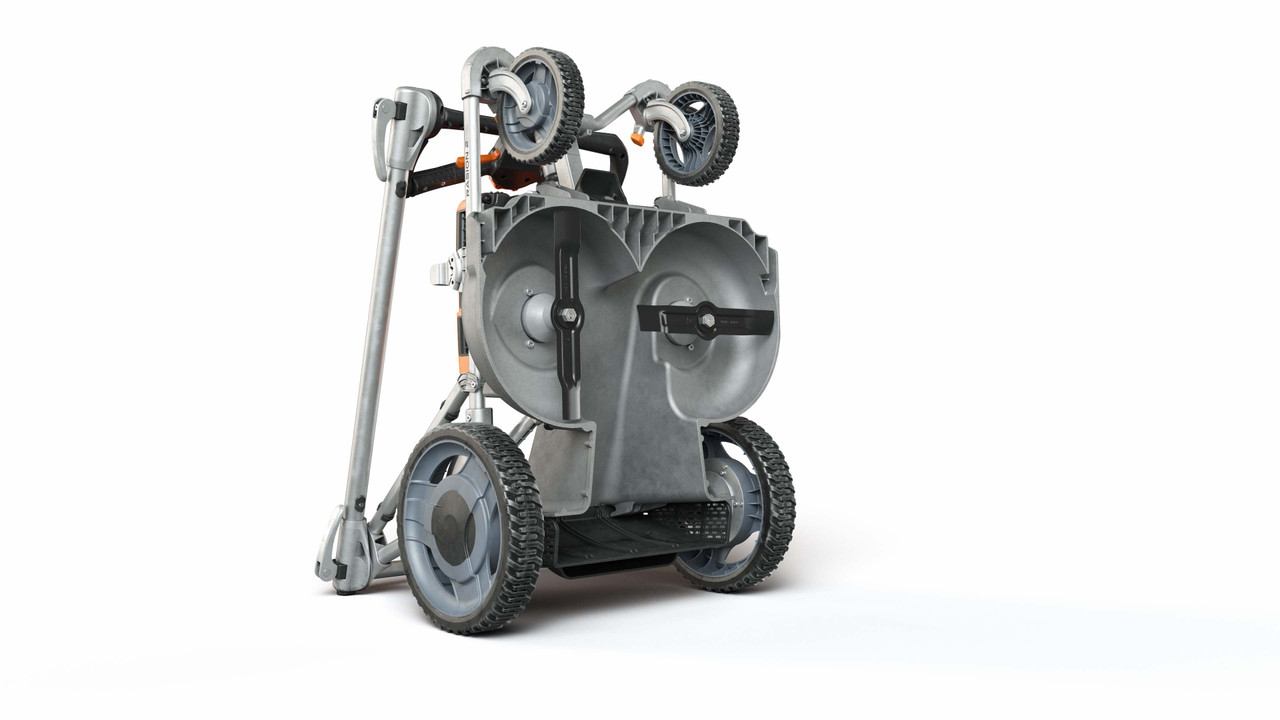

• Compact and foldable, easy to transport and store

STORE THEM NEATLY AWAY AND FORGET ABOUT THEM UNTIL YOU NEED THEM AGAIN

• No petrol, no emissions, which protects the environment, avoids clogging, and reduces maintenance.
• Optimised power consumption thanks to their very high motor efficiency of 93%

A perfect cut

The slim steel blades with high tensile strength and their counter-rotating movement from 3,000 to 5,000 rpm provide optimum results.

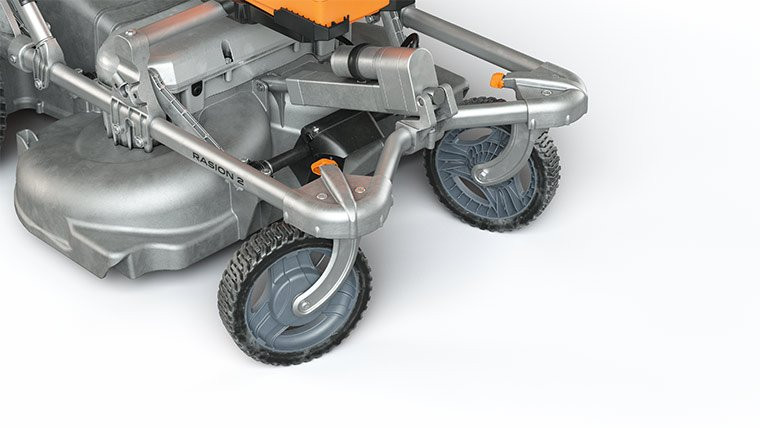

Ease of handling

The power-assisted Zero Turn system makes a 180° turn easy, thanks to the front swivel wheels and the reverse rotation of the rear wheels.

40 mm notched non-slip drive wheels at the front increase stability and smooth running. There are two settings to choose from: swivel wheels or guided steering to manage slopes.

Cutting adjustment

The cutting height adjustment, from 25 to 75 mm, is centralised in a single manual control.

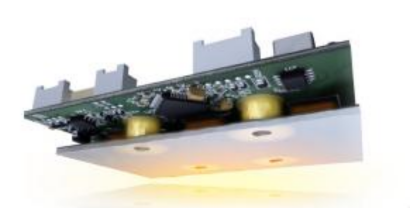

Heat dissipation

Based on LED technologies, the Insulated Metal Substrate circuit board improves heat dissipation, heat exchange, and increases the electronic capacity of the tool. It absorbs power peaks during intensive mowing without reducing the speed of the blades.

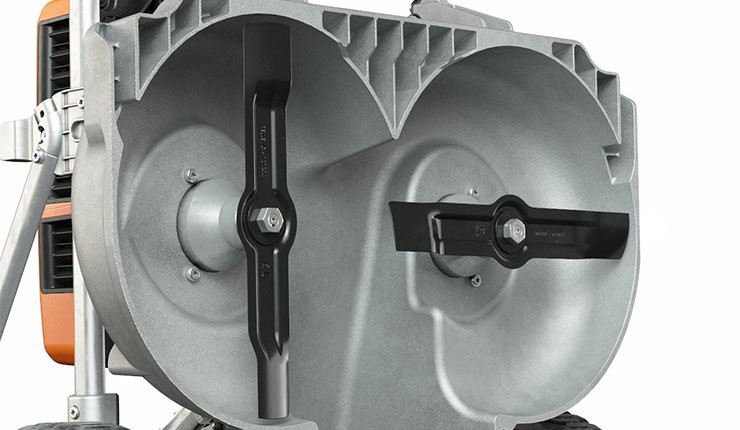

Optimised automatic unblocking system

Reverse rotation of the blades allows excess grass to be removed from the safety casing while keeping the mower in operation.

Technical features
