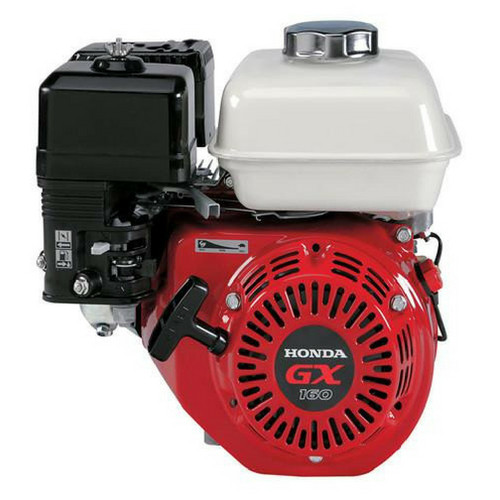

GENUINE HONDA GX160 FRONT VIEW

HONDA GX160 ENGINE RANGE - 5.5 HP

×
×
Price:
$638.00
Shipping:
Calculated at checkout
Quantity:
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    Honda GX160

    Engine Types Descriptions

    ENGINE TYPE CODE ENGINE DESCRIPTION
    HX2 5.5HP ENGINE | 3/4 SHAFT | 6:1 REDUCTION GEAR BOX
    HXE8** 5.5HP ENGINE | ELECT START | 3/4 SHAFT | 6:1 REDUCTION GEAR BOX
    LX2 5.5HP ENGINE | 20mm SHAFT | 2:1 REDUCTION GEAR BOX
    PXU 5.5HP ENGINE | 3/4 SCREWED SHAFT
    QXU 5.5HP ENGINE | 3/4 STRAIGHT SHAFT
    RXE2 5.5HP ENGINE | ELECTRIC START | 22MM SHAFT | 2:1 REDUCTION GEAR BOX + CLUTCH
    RXU** 5.5HP ENGINE | 22MM SHAFT | 2:1 REDUCTION GEAR BOX + CLUTCH
    SXU 5.5HP ENGINE | 20MM STRGHT SHAFT
    TXDU 5.5HP ENGINE | 5/8 SCREWED SHAFT
    VXU1 5.5hp ENGINE | V-SHAFT ENGINE

     **Discountiued see Honda GX200 Range

    FEATURES

    • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
    • Ball bearing supported crankshaft for greater stability
    • Forged steel crankshaft and rigid crankcase
    • Heavy duty recoil starter
    • Automatic mechanical de-compression system
    • Oil Alert



    COMMON APPLICATIONS

    Being the Flagship model in Honda's world-renowned GX Engine range, the GX160 can be used in all sorts of applications.

    From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, this bad boy has plenty of uses. Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the GX160.

     HONDA GX160 ENGINE

    FUEL EFFICIENT, HIGH OUTPUT OPERATION

    The GX160's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

    It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

    And the GX160 incorporates a high compression ratio for better fuel efficiency than its competitors.



    EASY TO USE

    A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

    The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.

    And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the GX160's features go on and on.



    POWER CURVE


    * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

    Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.



    SPECIFICATIONS

    MODEL GX160
    TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
    BORE & STROKE 68 x 45 mm
    DISPLACEMENT 163 cm3
    COMPRESSION RATIO 8.5:1
    NET POWER 3.6kW (4.8HP) at 3,600 rpm
    CONTINUOUS RATED POWER 2.9kW (3.9HP) at 3,600 rpm
    MAXIMUM NET TORQUE 10.3 Nm at 2,500 rpm
    IGNITION SYSTEM Transistorised magneto ignition
    STARTING SYSTEM Recoil (Electric Starter Optional)
    COOLING SYSTEM Forced-Air
    PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
    FUEL CONSUMPTION AT RATED POWER 1.4 L/h at 3,600 rpm
    RECOMMENDED FUEL Unleaded
    LUBRICATION SYSTEM Splash
    RECOMMENDED OIL 10W/30 API SG
    OIL CAPACITY 0.6l
    FUEL TANK CAPACITY 3.1l
    DIMENSIONS 312 x 362 x 346mm
    DRY WEIGHT 15kg
    OTHER OPTIONS 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction




  • Product Reviews

    ×

    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Warranty Information

    3 YEAR WARRANTY

    The GX160, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

    That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX160 is built to last.

    And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & service requirements.
