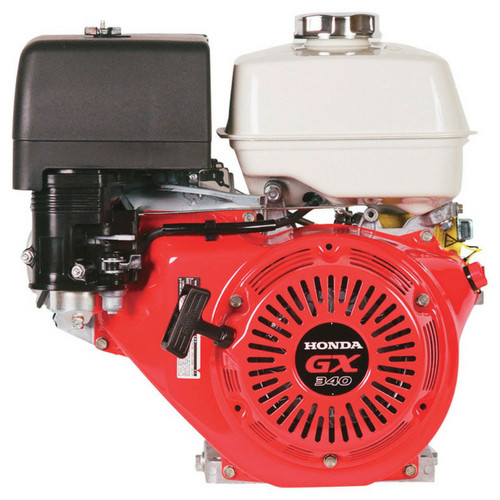

Genuine Honda GX270 - Front

HONDA GX340 ENGINE RANGE - 11.0 HP

×
×
Price:
$1,060.00
Shipping:
Calculated at checkout
Quantity:
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    Genuine Honda GX340 11 HP Small Engine

    ENGINE TYPE DESCRIPTIONS

    TYPE CODE DESCRIPTION
    VXE8 11 HP ENGINE |TAPPERED SHAFT | ELECTRIC START | SUIT GENERATOR
    VX8 11HP ENGIEN | TAPPERED SHAFT | SUIT GENERATOR

    COMMON APPLICATIONS

    The GX340 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.

    Due to its power, heavy-duty Forestry Equipment, Agricultural Equipment and Water Pumps are also powered by the gutsy GX340.

     HONDA GX340 ENGINE

    FUEL EFFICIENT, HIGH OUTPUT OPERATION

    A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX340's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.

    It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer where and when you need it.

    The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine - an improved piston design reduces mechancal noise, with an overall reduction of engine noise by up to 5 dB.



    SMOOTH PERFORMANCE

    The GX340 offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy duty balancer shaft to deliver smooth performance.

    A large capacity, multi-chamber exhaust system and sophisticated air intake system also makes for an exceptionally quiet engine.

    And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the GX340's features go on and on.



    3 YEAR WARRANTY

    Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

    The GXV340's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.

    With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.

     POWER CURVE


    * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

    Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.



    SPECIFICATIONS

    MODEL GX340
    TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
    BORE & STROKE 82 x 64 mm
    DISPLACEMENT 337cm3
    COMPRESSION RATIO 8.0:1
    NET POWER 7.1kW (9.5HP) at 3,600 rpm
    CONTINUOUS RATED POWER 5.8kW (7.8HP) at 3,600 rpm
    MAXIMUM NET TORQUE 22.1 Nm at 2,500 rpm
    IGNITION SYSTEM Transistorised magneto ignition
    STARTING SYSTEM Recoil (Electric Starter Optional)
    COOLING SYSTEM Forced-Air
    PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
    FUEL CONSUMPTION AT RATED POWER 3.0 L/h at 3,600 rpm
    RECOMMENDED FUEL Unleaded
    LUBRICATION SYSTEM Splash
    RECOMMENDED OIL 10W/30 API SG
    OIL CAPACITY 1.1l
    FUEL TANK CAPACITY 6.1l
    DIMENSIONS 405 x 450 x 443mm
    DRY WEIGHT 30kg
    OTHER OPTIONS 2:1 Reduction
  • Product Reviews

    ×

    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Warranty Information

    3 YEAR WARRANTY
    The GX340, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & Lamp Coils with Multiple Output Options.And should there be any issues, a nationwide network of 400+ authorised Honda dealers are there to back you up with all your parts & service requirements.

    The GX340, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

    And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & Lamp Coils with Multiple Output Options.

    And should there be any issues, a nationwide network of 400+ authorised Honda dealers are there to back you up with all your parts & service requirements.
