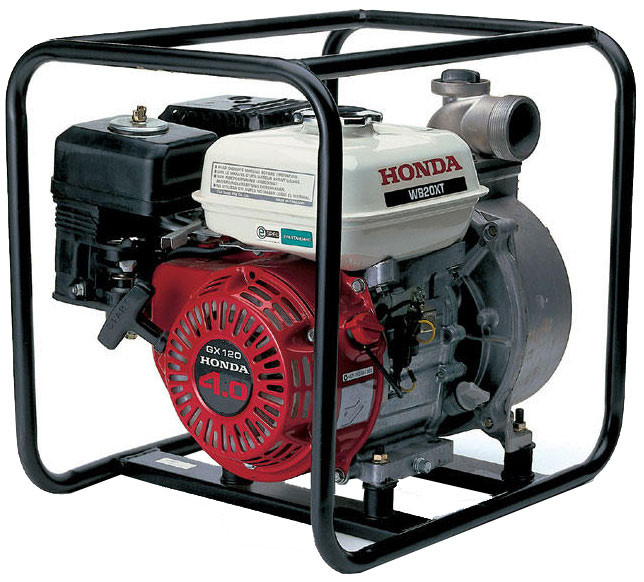

A premium Volume Water Pump, the WB20XT has been designed with the end user in mind, for whatever application you want to use it in.
Drawing on decades of engineering advancements, the Honda GX120 engine that powers the WB20 ensures easy starting, easy usage, outstanding fuel economy, low emission and long-lasting durability.
With oil alert and rubber mounts, the full frame type provides stability and delivers smooth running with less vibration. The result is a reliable, long-lasting pump that will perform day in, day out.
With capacity to deliver 600 litres per minute, this 2" Volume Water Pump has a maximum suction head of 8m and a maximum total head of 32m.
Like so many other Honda products, the WB20 starts first time, every time with Honda’s famous one pull easy start system.
It runs on unleaded fuel, so you’ll never have to mix oil and petrol again. The result? An environmentally-friendly pump with low emissions & fuel consumption.
Honda Water Pumps offer a level of uncompromising performance to a wide variety of water transfer applications.
Designed for easy starting, priming and dependable service, used throughout the world for over 20 years, Honda water pumps have earned a reputation for unsurpassed reliability and performance.
These pumps are known for their durable construction, quality engines and easy portability; features that apply to all categories of Honda pumps.
SPECIFICATIONS
ENGINE | GX120 |
---|---|
DISPLACEMENT (CC) | 118cc |
FUEL TYPE | Unleaded |
FUEL TANK CAPACITY | 2.5 litres |
FUEL CONSUMPTION | 1 l/hr |
TOTAL HEAD | 32m |
SUCTION HEAD | 8m |
MAXIMUM PUMPING CAPACITY | 600 litres |
SUCTION PORT DIAMETER | 50mm |
DISCHARGE PORT DIAMETER | 50mm |
MAXIMUM PUMPING CAPACITY | 600 l/min |
SELF PRIMING TIME (AT 5m) | 110 sec at 5m |
PUMP TYPE | Centrifugal volume pump |
OIL ALERT | Yes |
DIMENSIONS | 455 x 365 x 420 |
DRY WEIGHT (KG) | 21 |
MOUNTING TYPE | Rubber |
HOSE BAND/STAINER | Yes |
All Honda pumps come with an impressive 4 Year Domestic Warranty and 1 Year Commercial Warranty, giving you added peace of mind.When combined with a network of over 450 authorised independent dealers around Australia, you've got some serious back-up with a Honda pump.There's no question; if you're after a quality investment that won't let you down, the Honda WB20 is just the pump for you.
