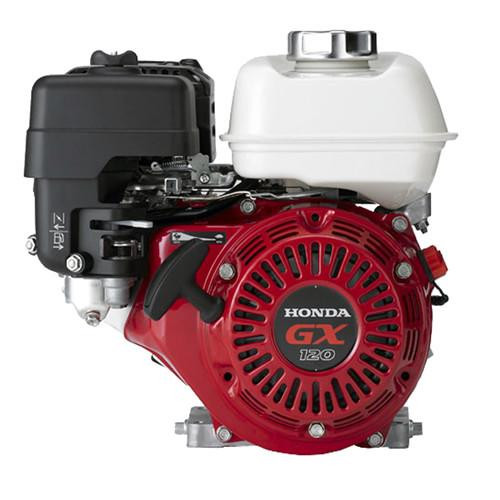

Genuine Honda GX120 Small Engine Front View

HONDA GX120 ENGINE RANGE - 3.5 HP

×
×
Price:
$638.00
Shipping:
Calculated at checkout
Quantity:
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    Genuine Honda GX120 3.5 HP Engine Range

    Features

    • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
    • Ball bearing supported crankshaft for greater stability
    • Forged steel crankshaft and rigid crankcase
    • Heavy duty recoil starter
    • Automatic mechanical de-compression system
    • Oil Alert

    COMMON APPLICATIONS

    The GX120 engine is frequently used by customers in commercial lawn and garden equipment.

    It's also used to power Construction/Industrial Equipment, as well as in Agricultural settings - including the powering of Water Pumps.

     honda GX120 engine

    FUEL EFFICIENT, HIGH OUTPUT OPERATION

    The GX120's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

    It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

    And the GX120 incorporates a high compression ratio for better fuel efficiency than its competitors.



    SMOOTH OPERATOR

    A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

    The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.

    And with a sophisticated air intake system, Oil Alert, Large fuel tank, Dual element air cleaner, Easily accessible spark plug and Cast Iron cylinder sleeve, the GX120 will work as hard as you with minimal fuss - day in, day out.



    POWER CURVE


    * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

    Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.



    3 YEAR WARRANTY

    The GX120, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

    That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX120 is built to last.

    And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & service requirements.



    SPECIFICATIONS

    MODEL GX120
    TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
    BORE & STROKE 60 x 42 mm
    DISPLACEMENT 118 cm3
    COMPRESSION RATIO 8.5:1
    NET POWER 2.6kW (3.5HP) at 3,600 rpm
    CONTINUOUS RATED POWER 2.1kW (2.8HP) at 3,600 rpm
    MAXIMUM NET TORQUE 7.3 Nm at 2,500 rpm
    IGNITION SYSTEM Transistorised magneto ignition
    STARTING SYSTEM Recoil Starter
    COOLING SYSTEM Forced-Air
    PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
    FUEL CONSUMPTION AT RATED POWER 1.0 L/h at 3,600 rpm
    RECOMMENDED FUEL Unleaded
    LUBRICATION SYSTEM Splash
    RECOMMENDED OIL 10W/30 API SG
    OIL CAPACITY 0.6l
    FUEL TANK CAPACITY 2.0l
    DIMENSIONS 305 x 341 x 318MM
    DRY WEIGHT 13.0kg
    OTHER OPTIONS 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
