Product Description
The Honda GP160 Engine Range
Designed to power those odd jobs around the home
Perfect for domestic applications and light use, the GP160 is designed to power those odd jobs around the home. From pressure washers to water pumps to generators, it will help get the task done reliably and on time.
ENGINE TYPES DESCRIPTIONS
TYPE CODE DESCRIPTION VX3R 5.5HP ENGINE | TAPPERED SHAFT | SUIT GENERATOR PMBDR 5.5HP ENGINE | 3/4" SCREWED SHAFT | NO OIL ALERT | WITH SPARK ARRESTER - SUIT PUMP QX3R 5.5HP ENGINE | 3/4" STRAIGHT SHAFT Features
- The GP160 engine is suitable for a wide range of light duty applications such as home-use tillers, aerators and other applications.
- OHC design enhances combustion efficiency.
- High power-to-displacement ratio.
- Easy starting with an automatic decompression system.
- High quality materials and purpose-built components which ensure reliable, long-term use.
- Low fuel and oil consumption.
COMMON APPLICATIONS
Perfect for domestic applications and light use, the new (2014) GP160 is designed to power those odd jobs around the home.
From pressure washers to water pumps to generators, it will help get the task done reliably and on time.
Of course, if it's more power you're after, including for commercial applications, it might pay to compare it with the flagship GX160. Click on the "Compare Products" icon in the top right of this page to see how the GP160 stacks up.
GREAT FUEL EFFICIENCY
The GP160's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
It draws on decades of Honda engineering - the GX160 in particular - with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.
A success overseas, its introduction into Australia further reinforces Honda's reputation as a company that helps people get things done.
EASY TO USE
A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.
The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.
And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Recoil Starter, the GP160 is there to help you out.
SPECIFICATIONS
Model GP160H Description code GCASH Type 4 stroke, overhead valve, single cylinder, inclined by 25° Displacement 163 cm3 (9.9 cu-in) Bore x stroke 68.0 x 45.0 mm (2.68 x 1.77 in) Net power (SAE J1349) *1 3.6 kW (4.8 HP)/3,600 min-1 (rpm) Continuous rated power 2.9 kW (3.9 HP)/3,600 min-1 (rpm) Maximum net torque (SAE J1349) *1 10.3 N·m (1.05 kgf·m, 7.6 lbf·ft)/2,500 min-1 (rpm) Compression ratio 8.5 : 1 Fuel consumption (at continuous rated power) *1 1.4 Liters (0.37 US gal, 0.31 Imp gal)/h Ignition system Transistorized magneto Ignition timing B.T.D.C. 25° /1,400 min-1 (rpm) Recommended spark plug BPR6ES (NGK)/W20EPR-U (DENSO) Lubrication system Forced splash Oil capacity 0.58 Liter (0.61 US qt, 0.51 Imp qt) Recommended oil SAE 10W-30 API service classification SE or higher Cooling system Forced air Starting system Recoil starter Stopping system Ignition primary circuit ground Carburetor Horizontal type, butterfly valve Air cleaner Dual type Governor Centrifugal weight system Breather system Flat valve type Fuel used Unleaded gasoline with a pump octane rating 86 or higher Fuel tank capacity 3.1 Liters (0.82 US gal, 0.68 Imp gal) *1: The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine
model and measured in accordance with SAE J1349 at 3,600 min-1 (rpm) (net power) and at 2,500 min-1 (rpm) (max net torque).
Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary
depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance,

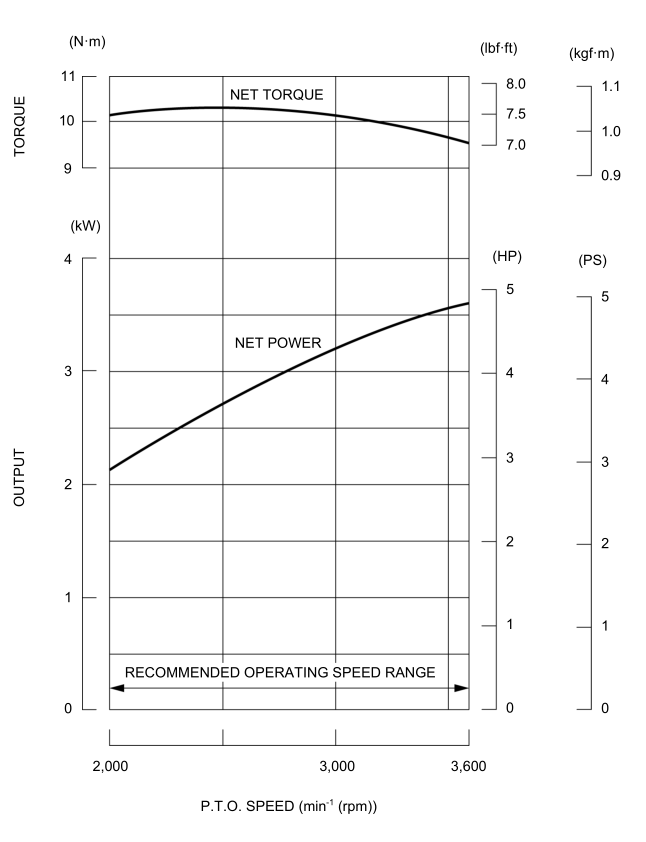

and other variables.PERFORMANCE CURVE

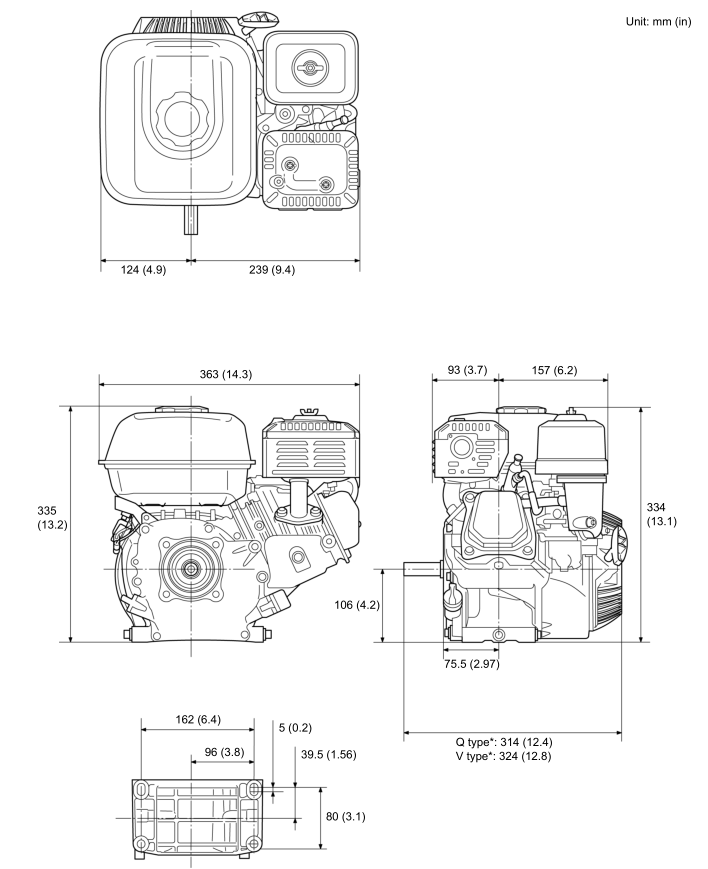

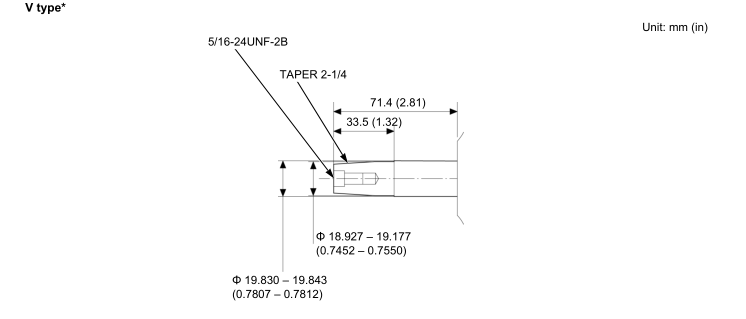

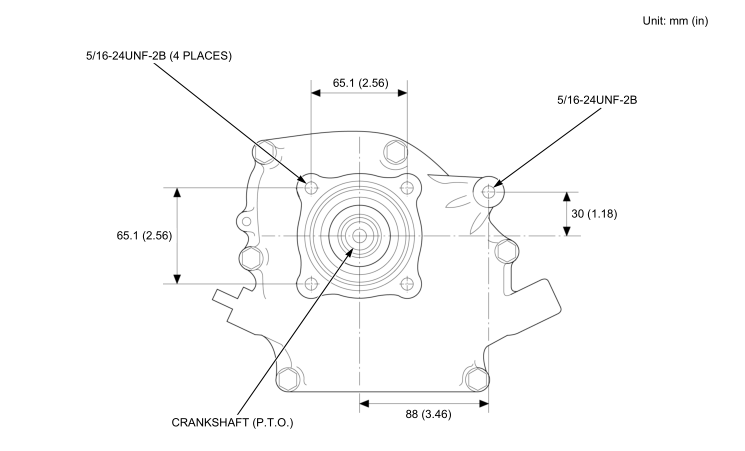

DIMENSIONAL DRAWINGS
MAINTENANCE SCHEDULE
-
Product Reviews
-
Warranty Information
Length of Warranty (month)
*From date of original purchase
Non-Commercial Use - 12
Commercial Use - 12
Go-kart Use - No Warranty
Excludes the following uses.
Rental, Construction, Snow Blower and Long Tail Boat -
