  • Product Description

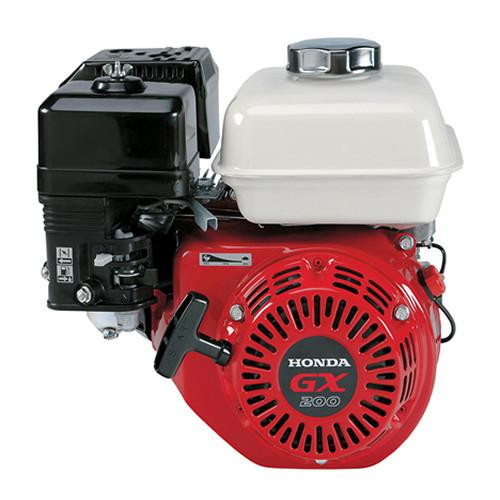

    GENUINE HONDA GX200 SMALL ENGINE RANGE - 6.5 HP

    Features

    • Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
    • Ball bearing supported crankshaft for greater stability
    • Forged steel crankshaft and rigid crankcase
    • Heavy duty recoil starter
    • Automatic mechanical de-compression system
    • Oil Alert

    COMMON APPLICATIONS

    The GX200 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.

    Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the GX200.

    Of course, to accurately compare the GX200 with other Honda engines, click on the Compare Products icon next to the Share tab, in the top right of this page.



    FUEL EFFICIENT, HIGH OUTPUT OPERATION

    The GX200's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

    It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

    And the GX200 incorporates a high compression ratio for better fuel efficiency than its competitors.


    HONDA GX200 ENGINE

    SMOOTH OPERATOR

    The GX200's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

    The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.

    And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the GX200's features go on and on.



    POWER CURVE


    * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

    Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.



    3 YEAR WARRANTY

    The GX200, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

    That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX200 is built to last.

    And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & service requirements.



    SPECIFICATIONS

    MODEL GX200
    TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
    BORE & STROKE 68 x 54 mm
    DISPLACEMENT 196 cm3
    COMPRESSION RATIO 8.5:1
    NET POWER 4.1kW (5.5HP) at 3,600 rpm
    CONTINUOUS RATED POWER 3.7kW (5.0HP) at 3,600 rpm
    MAXIMUM NET TORQUE 12.4 Nm at 2,500 rpm
    IGNITION SYSTEM Transistorised magneto ignition
    STARTING SYSTEM Recoil (Electric Starter Optional)
    COOLING SYSTEM Forced-Air
    PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
    FUEL CONSUMPTION AT RATED POWER 1.7 L/h at 3,600 rpm
    RECOMMENDED FUEL Unleaded
    LUBRICATION SYSTEM Splash
    RECOMMENDED OIL 10W/30 API SG
    OIL CAPACITY 0.6l
    FUEL TANK CAPACITY 3.1l
    DIMENSIONS 313 x 376 x 346mm
    DRY WEIGHT 16.2kg
    OTHER OPTIONS 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
