Genuine Honda GX270 - Front

HONDA GX270 ENGINE RANGE - 9.0 HP

×
×
Price:
$980.00
Shipping:
Calculated at checkout
Quantity:
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    Genuine Honda GX270 Small Engine - 9 HP

    Features

    Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiencyFeatures

    • Ball bearing supported crankshaft for greater stability
    • Forged steel crankshaft and rigid crankcase
    • Heavy duty recoil starter
    • Automatic mechanical de-compression system
    • Oil Alert
    HONDA GX270 ENGINE


    COMMON APPLICATIONS

    The GX270 is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.

    Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the GX270.

    Of course, to accurately compare the GX270 with other Honda engines, click on the Compare Products icon next to the Share tab, in the top right of this page.



    FUEL EFFICIENT, HIGH OUTPUT OPERATION

    A digital CDI ignition system with variable timing and an increased compression ratio combines with the GX270's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency.

    It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

    And the use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine - an improved piston design reduces mechancal noise, with an overall reduction of engine noise by up to 5 dB.



    THE WHOLE PACKAGE

    The GX270's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

    With a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the GX270's features go on and on.

    And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & Lamp Coils with Multiple Output Options.

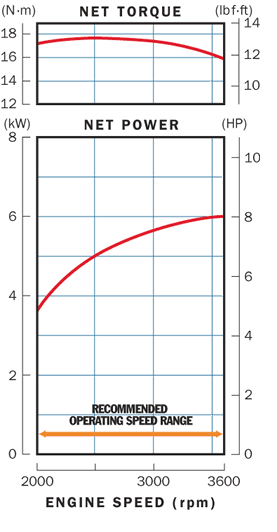

     POWER CURVE


    * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

    Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.

    3 YEAR WARRANTY

    The GX270, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

    That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX270 is built to last.

    And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & service requirements.

    SPECIFICATIONS

    MODEL GX270
    TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
    BORE & STROKE 77 x 58mm
    DISPLACEMENT 270 cm3
    COMPRESSION RATIO 8.2:1
    NET POWER 6.0kW (8.0HP) at 3,600 rpm
    CONTINUOUS RATED POWER 5.1kW (6.8HP) at 3,600 rpm
    MAXIMUM NET TORQUE 17.7 Nm at 2,500 rpm
    IGNITION SYSTEM Transistorised magneto ignition
    STARTING SYSTEM Recoil (Electric Starter Optional)
    COOLING SYSTEM Forced-Air
    PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
    FUEL CONSUMPTION AT RATED POWER 2.5 L/h at 3,600 rpm
    RECOMMENDED FUEL Unleaded
    LUBRICATION SYSTEM Splash
    RECOMMENDED OIL 10W/30 API SG
    OIL CAPACITY 1.1l
    FUEL TANK CAPACITY 5.3l
    DIMENSIONS 380 x 430 x 410mm
    DRY WEIGHT 25kg
    OTHER OPTIONS 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
