Honda V-Twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficiency, not to mention a 3 year warranty.

HONDA GX630 ENGINE V-TWIN RANGE - 23 HP

×
×
Price:
$2,266.00
Shipping:
Calculated at checkout
Quantity:
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    INTRODUCING THE GX630

    Honda V-Twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficiency, not to mention a 3 year warranty.

    ENGINE TYPES DESCRIPTIONS

    TYPE CODE DESCRIPTION
    QZB3 23HP ENGINE | 1" SHAFT | ELECTRIC START
    VXE1 23HP ENGINE | TAPPERED SHAFT | ELECTRIC START



    MUFFLER OPTIONS DESCRIPTIONS

    In choosing a muffler the unit must be viewed from the PTO side.

    MUFFLER CODE DESCRIPTION
    VHLA1 HIGH LEFT MOUNT MUFFLER
    VHRA1 HIGH RIGHT MOUNT MUFFLER
    VSLA1 LEFT SIDE MOUNT MUFFLER
    VSRA1 RIGHT SIDE MOUNT MUFFLER
    VTRA1 TOP MOUNT RIGHT SIDE DISCHARGE MUFFLER



    Features

    • Rev limiter to protect against damage from over-revving
    • Two barrel inner-vent carburetor for more precise fuel metering
    • Forged steel crankshaft
    • Pressure fed crankshaft bearings
    • High capacity 36 blade cooling fan
    • Oil Alert



    COMMON APPLICATIONS

    Honda's V-Twin range of engines are the cream of the crop, powering Pressure Washers, Water Pumps and Commercial Lawn & Garden Equipment throughout Australia.

    The GX630 V-Twin can also be found in Tillers/Cultivators and other Agricultural Equipment, Generators as well as many different applications.

    And if it's something more hardcore that you need power for, the GX630 is also used in the Forestry and Construction/Industrial industries.


    FUEL EFFICIENT OPERATION

    The fuel economy of the GX630 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.

    It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving. A hemispherical combustion chamber delivers rapid combustion, and it features Pressure fed crankshaft bearings.

    Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.

    PROVEN RELIABILITY

    The GX630's high capacity pump facilitates consistent oil delivery, and a handy Oil Alert will keep you posted if you look like running dry.

    There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.

    The result is a long-lasting, high-performing and reliable engine.

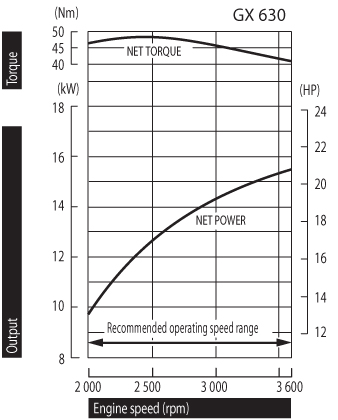

    POWER CURVE


    * The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

    Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.

    3 YEAR WARRANTY

    Don't forget, all Honda V-Twin Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

    Honda has a network of over 400 authorised dealers around Australia, so should you need parts, accessories, or maintenance done, you're not alone.

    All just extra reasons for you to Love Your Honda GX630 V-Twin.

    SPECIFICATIONS

    MODEL GX630
    TYPE Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft
    BORE & STROKE 2 / 78 x 72 mm
    DISPLACEMENT 688cm3
    COMPRESSION RATIO 9.3:1
    NET POWER 15.5 kW (20.8 HP) / 3 600 rpm
    CONTINUOUS RATED POWER 10.5 kW (14.1 HP) / 3 000 rpm 12.0 kW (16.1 HP) / 3 600 rpm
    MAXIMUM NET TORQUE 48.3 Nm / 4.93 kgfm / 2 500 rpm
    IGNITION SYSTEM Digital CDI with variable ignition timing
    STARTING SYSTEM Electric starter
    COOLING SYSTEM Forced-Air
    FUEL CONSUMPTION AT RATED POWER 6.0 L/hr - 3 600 rpm
    RECOMMENDED FUEL Unleaded
    LUBRICATION SYSTEM Full-pressure
    OIL CAPACITY 1.9l
    DIMENSIONS 405 x 410 x 438 mm
    DRY WEIGHT 44.4kg
