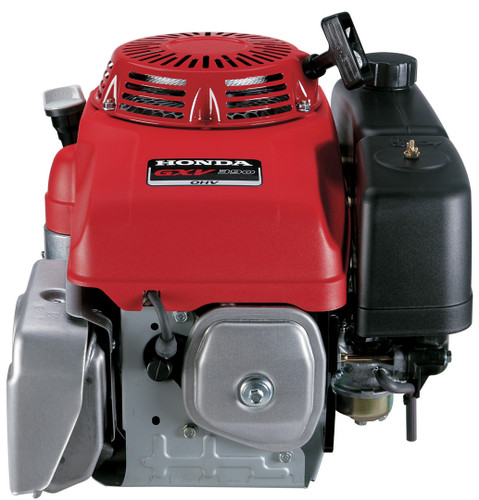

HONDA GXV390 ENGINE RANGE - 13 HP
Brand:
Price:
$1,413.00
Availability:
Shipped in 1-2 business days
-
Product Description
INTRODUCING THE GXV390
The GXV390: Where quality and performance come standard.
ENGINE TYPES DESCRIPTIONS
TYPE CODE DESCRIPTION DAEA 13HP | 1" VERTICAL SHAFT | 3A COIL | NO FUEL TANK OR OIL ALERT DX2A 13HP ENGINE | 1" VERTICAL SHAFT | OIL ALERT & FUEL TANK DXEA 13HP ENGINE | 1" VERTICAL SHAFT | ELECTRIC START, FUEL TANK, OIL ALERT COMMON APPLICATIONS
The Honda GXV390 is used throughout Australia to power commercial lawn and garden equipment, including Ride-on lawn mowers.
As well as this, the GX390 is often used to power Construction/Industrial Equipment, as well as heavy-duty Agricultural equipment.
There's enough directional power in the GX390 to also power equipment such as Mini Loaders, and it's also used in Floor Cleaning applications.
FUEL EFFICIENT, HIGH OUTPUT OPERATION
The GXV390's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.
It also incorporates a high compression ratio for better fuel efficiency, which is handy for your pocket - and the environment.
Precision engineered components result in lower vibration, and the GXV390 features Dual balancer shafts and a Ball Bearing-supported crankshaft for greater stability.
EXCEPTIONALLY QUIET
The GXV390 is exceptionally quiet for its size and output. This is in part due to its large capacity, multi-chamber exhaust system.
Its design incorporates a forged steel crankshaft and rigid crankcase, helical cut gears, and a sophisticated air intake system.
And it emits less mechanical noise due to lightweight, noise-reducing materials.
* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.
Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.
3 YEAR WARRANTY
Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.
The GXV390's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.
With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.
SPECIFICATIONS
MODEL GXV390 TYPE 4-stroke, overhead valve, single-cylinder, Vertical Shaft BORE & STROKE 88 x 64 mm DISPLACEMENT 389 cm3 COMPRESSION RATIO 7.7:1 NET POWER 7.6kW (10.2HP) at 3,600 rpm CONTINUOUS RATED POWER 5.2kW (7.0HP) at 3000 rpm MAXIMUM NET TORQUE 24.2 Nm at 2,500 IGNITION SYSTEM Transistorised magneto ignition STARTING SYSTEM Recoil (Electric Start Optional) COOLING SYSTEM Forced-Air PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side) FUEL CONSUMPTION AT RATED POWER 2.5 L/h at 3,000 rpm RECOMMENDED FUEL Unleaded LUBRICATION SYSTEM Pressure and splash RECOMMENDED OIL 10W/30 API SG OIL CAPACITY 1.1l FUEL TANK CAPACITY 2.1l DIMENSIONS 430 x 385 x 410 mm DRY WEIGHT 33.0kg -
Product Reviews
-
Warranty Information
3 YEAR WARRANTY
Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.The GXV390's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.
Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.
The GXV390's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.
With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine. -
