The ultra-lightweight GX35 Mini 4-Stroke efficiently delivers the kind of efficient clean, powerful, quiet performance that you’d expect from a larger engine – but in a very compact package.

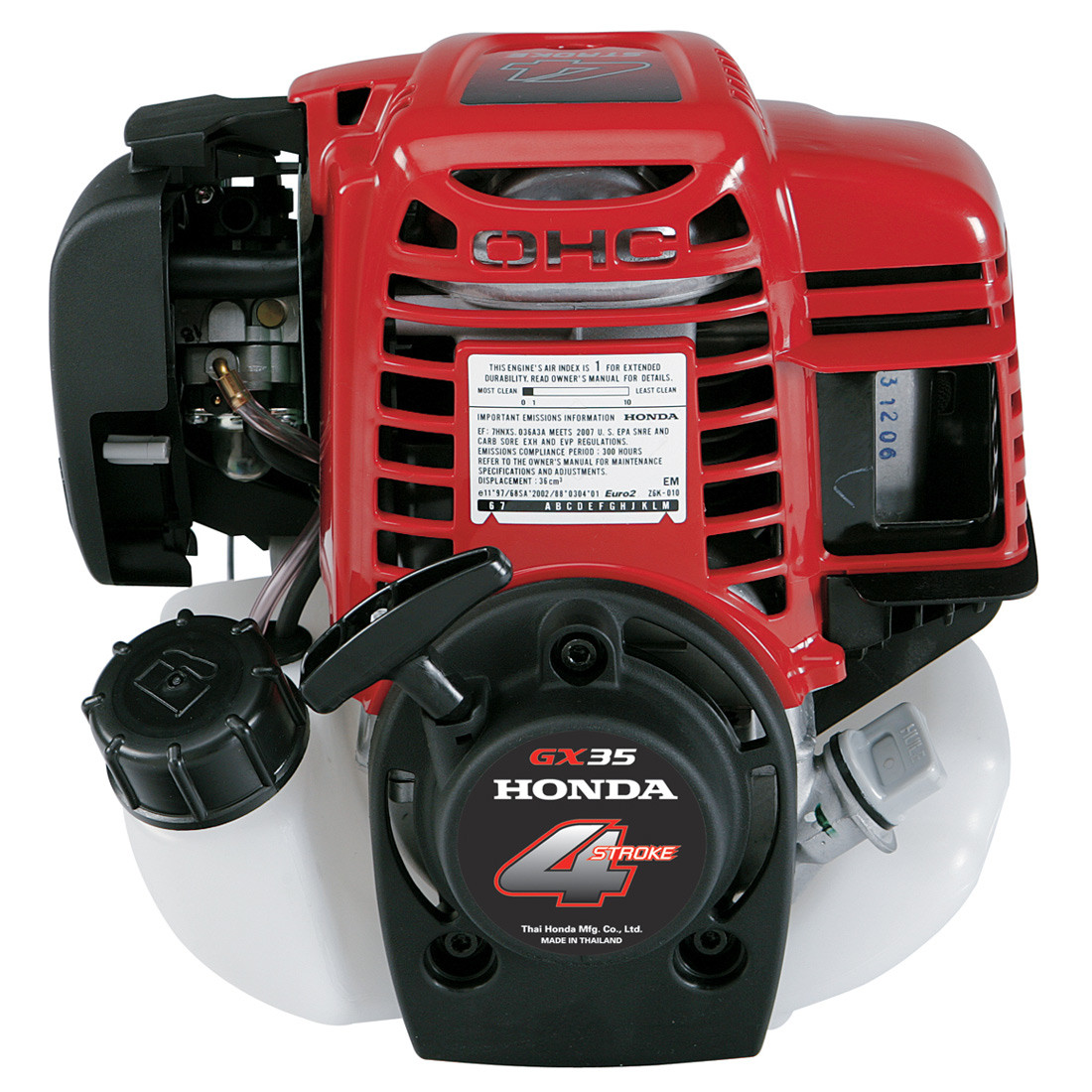

HONDA GX35 M4 ENGINE RANGE - 1.3 HP

×
×
Price:
$465.00
Availability:
Out of Stock - not expected until Mar 2025
Description
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
Other Details
  • Product Description

    Honda GX35 Engine Range

    Make light work of hard tasks.

    Honda applied our superior engine technology to create the world’s first 360° inclinable 4-Stroke engines. The ultra-lightweight GX Mini 4-Strokes effectively deliver the kind of efficient, cleaner, powerful and quiet performance that you’d expect from a larger engine – but in a very compact package.

    COMMON APPLICATIONS
      • Commercial lawn and garden equipment
      • Tillers / cultivators
      • Construction / industrial equipment
      • Agricultural equipment
      • Water pumps

    Features

    ADVANCED TECHNOLOGY

      • 4-stroke - no fuel/oil mixing
      • Full 360° "any-side-up" operation - use and store in any position
      • Exclusive rotary-slinger lubrication system
      • The world's lightest OHC engine

    FUEL EFFICIENT, HIGH OUTPUT OPERATION

      • Approximately half the operating cost of comparable 2-stroke engines
      • Efficient port configuration and large diameter valves maximize power output
      • Lighter, more rigid valve train
      • Carburetor equipped with accelerator pump for fast, easy acceleration

    SMOOTH PERFORMANCE

      • Precision engineered components result in lower vibration
      • Lighter piston minimizes vibration
      • Ball bearing supported crankshaft for greater stability
      • Roller bearing supported connecting rod

    EXCEPTIONALLY QUIET

      • Belt-driven OHC design reduces mechanical noise
      • Large capacity, multi-chamber exhaust system
      • Sophisticated air intake system

    PROVEN RELIABILITY

      • High quality materials, fit, and finish
      • Lifetime timing belt design
      • Integrated fuel system protection
      • Diaphragm carburetor

    EASY TO USE AND MAINTAIN

      • Easily accessible spark plug
      • Easy to drain and re-fill oil
      • No mixing of petrol and oil

    EASY STARTING

      • Exhaust decompression system
      • Unique low inertia design

    EMISSIONS COMPLIANT

      • No catalyst necessary

    AVAILABLE OPTIONS

      • Special designs for horizontal and vertical applications available
      • Several different model types available for both horizontal and vertical applications. Speak to our staff for more information on model types.

    SPECIFICATIONS

    Model GX35T
    Description code GCAMT
    Type 4-stroke, overhead cam, single cylinder
    Displacement 39.0 x 30.0 mm (1.54 x 1.18 in)
    Maximum horsepower 1.2 kW (1.6 PS) at 7,000 min-1(rpm)
    Maximum torque 1.9 N·m (0.19 kgf·m, 1.4 lbf·ft) at 5,500 min-1(rpm)
    Compression ratio 8.0: 1
    Minimum fuel consumption 360 g/kWh (265 g/PSh, 0.584 lb/PSh)
    Cooling system Forced-air
    Ignition system Transistorized magneto ignition
    Ignition timing 27° B.T.D.C. (Fixed)
    Spark plug CMR5H (NGK)
    Carburetor Diaphragm type
    Air cleaner Semi-dry type
    Lubrication system Oil mist
    Oil capacity 0.10 l (3.4 US oz, 3.5 lmp oz)

    Recommended operating ambient
    temperature

    – 5°C – 40°C (23°F – 104°F)
    Starting system Recoil starter
    Stopping system Ignition primary circuit ground
    Fuel used Unleaded gasoline with a pump octane number 86 or higher
    Fuel tank capacity 0.65 l (0.17 US gal, 0.14 lmp gal)
    PTO shaft rotation Counterclockwise (from PTO shaft side)


    PERFORMANCE CURVES



    DIMENSIONAL DRAWINGS

    [1] Unit: mm (in)

    MAINTENANCE SCHEDULE

  • Product Reviews

    ×

    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Warranty Information

    Length of Warranty (month)
    *From date of original purchase
    Non-Commercial Use - 24
    Commercial Use - 12
    Go-kart Use - No Warranty
