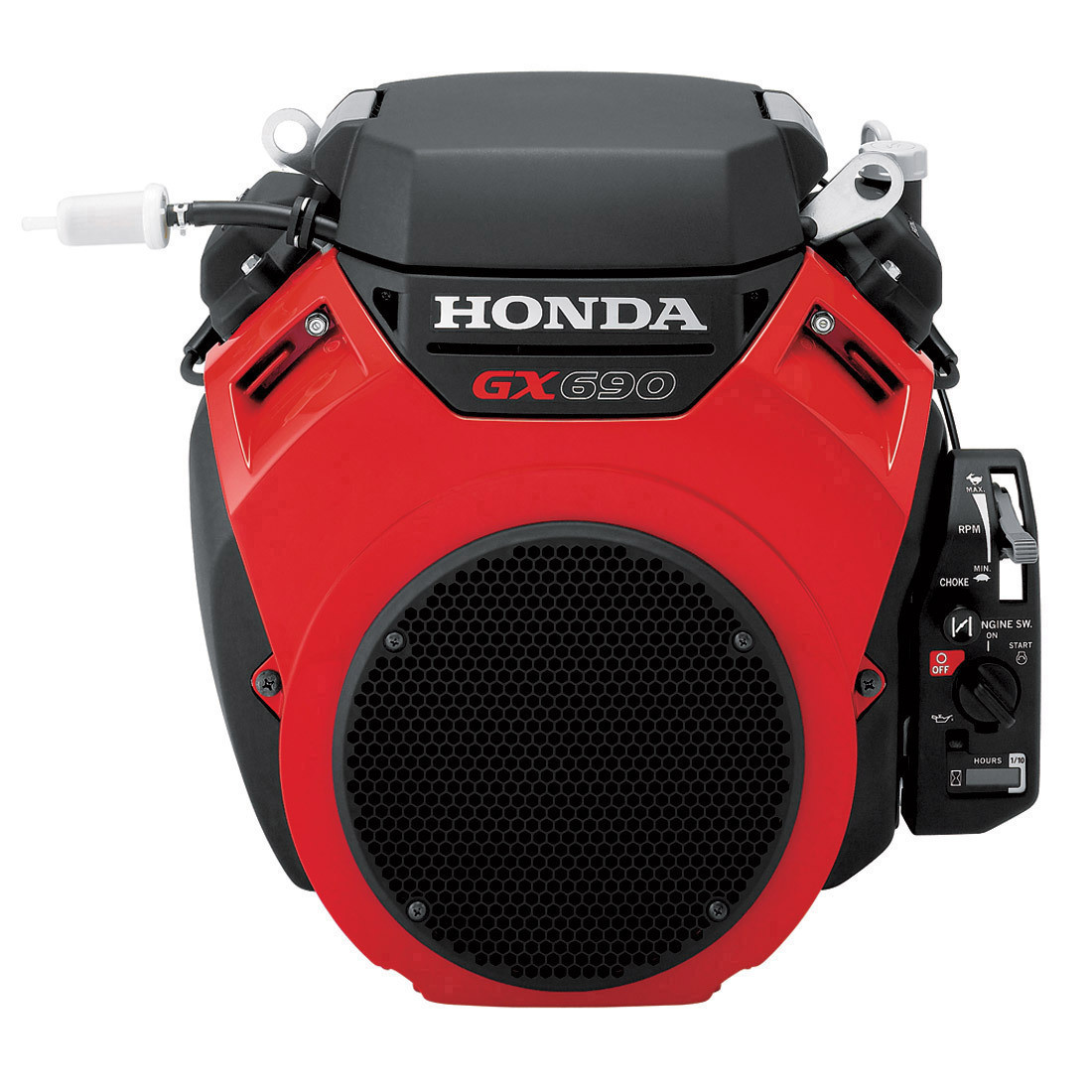

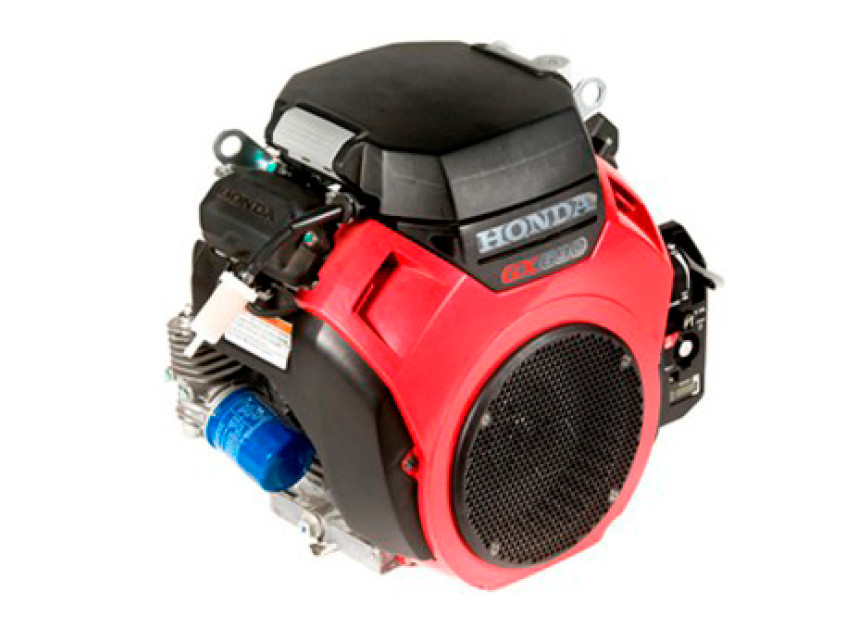

COMMON APPLICATIONS

Honda's V-Twin range of engines are the cream of the crop, powering Pressure Washers, Water Pumps and Commercial Lawn & Garden Equipment across Australia.

The GX690 V-Twin can also be found in Tillers/Cultivators and other Agricultural Equipment, Generators as well as in many different applications.

And if it's something more demanding that you need power for, the GX690 is also used in the Forestry and Construction/Industrial industries.

FUEL EFFICIENT OPERATION

The fuel economy of the GX690 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.

It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving. A hemispherical combustion chamber delivers rapid combustion, and it features Pressure fed crankshaft bearings.

Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.

PROVEN RELIABILITY

The GX690's high capacity pump facilitates consistent oil delivery, and a handy Oil Alert will keep you posted if you look like running dry.

There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.

The result is a long-lasting, high-performing and reliable engine.

3 YEAR WARRANTY

Don't forget, all Honda V-Twin Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

Honda has a network of over 400 authorized dealers around Australia, so should you need parts, accessories, or maintenance done, you're not alone.

You can work your GX690 V-Twin as hard as you want. It's built to last.

POWER CURVE

GX690/GX690R

* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm. Mass production engines may vary from this value.

Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.

SPECIFICATIONS

Dimensional Drawings

PTO Dimensional Drawings

Shaft types

Unit: mm (in)

Engine Mount Dimensional Drawings

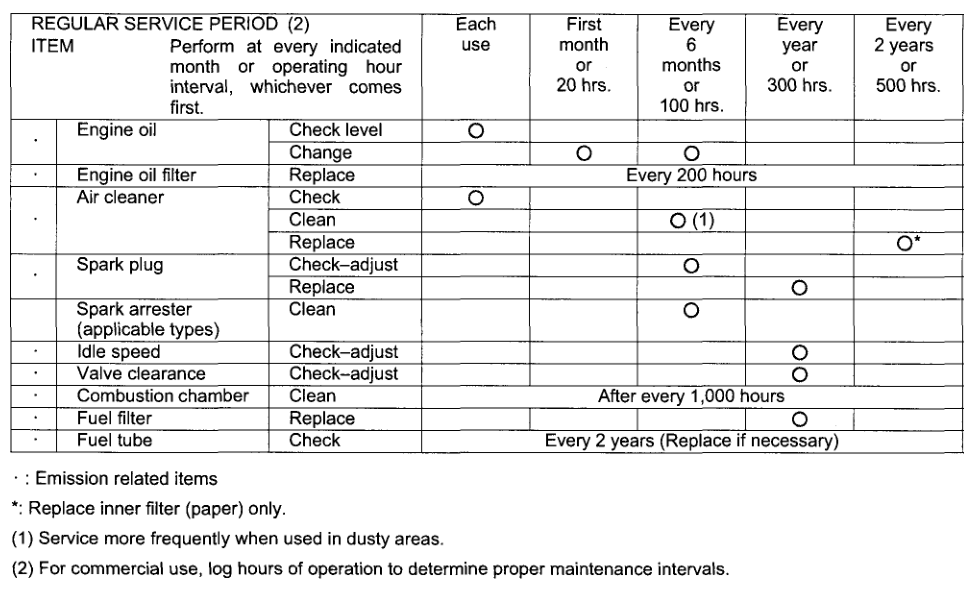

Maintenance Schedule
